Cannon Optimum/Fish Hawk x4D Package

Home/Downrigger Depth & Temp Sensors/Systems, Fish Hawk/Cannon Optimum/Fish Hawk x4D Package

Cannon Optimum/Fish Hawk x4D Package

$2,749.99 $2,649.99

The Fishhawk X4D System  +  The Cannon Optimum Downrigger  +  The Cannon Optimum Transducer

*Temporarily Out of Stock*



Cannon Optimum/Fish Hawk x4D Package

The Cannon Optimum/Fish Hawk x4D Package has it all; the system, the downrigger, and the transducer, all bundled to get you started. This Bundle will allow the Fishhawk system to display true running depth and the speed at your weight, the temperature at the weight, plus surface temperature and speed.

This video will show you how to pair your Cannon Optimum™ downrigger to a Fish Hawk™ X4D system.

Fish Hawk X4D Bluetooth System

The X4D provides critical probe speed, water temperature and the true depth of your downrigger weight. Using a water pressure sensor, the X4D also eliminates guesswork by telling you exactly where the downrigger ball is in the water column. Surface speed and temperature are also displayed.

Built-in Bluetooth functionality allows the X4D Display to share screen data with a mobile device. A free Fish Hawk Mobile App turns your smartphone into a second display that has a Catch Log feature to capture as well as share information. The X4D wirelessly integrates with Cannon’s Optimum Downrigger and Humminbird’s One-Boat Network to put Fish Hawk information at your fingertips anywhere in the boat.

System Includes:

  • Transom mount transducer with 30′ cable and hardware
  • Power cord with 20′ cable
  • Display with mount and protective cover
  • Fish Hawk Probe, breakaway double snap swivel and protective bumper

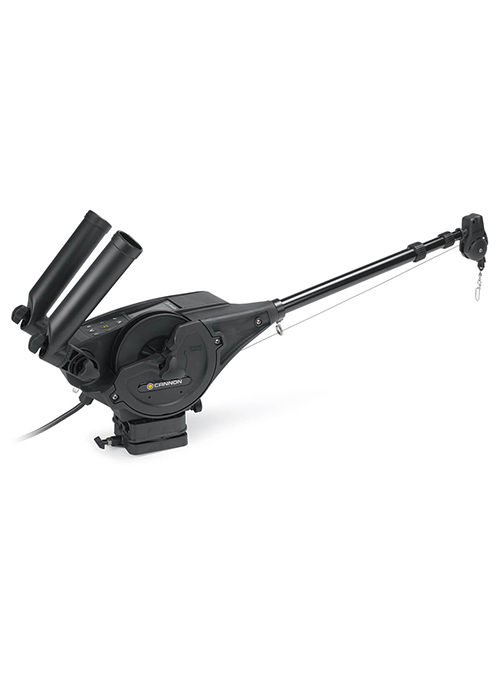

Cannon Optimum Electric Downrigger(#1902335)

The Optimum provides the intelligence needed to put the bait where the fish are. Precisely troll any lure while presenting depth and trolling data on a full-color 3.5″ LCD display. Optimum wirelessly networks up to four downriggers which can be controlled simultaneously through the Cannon mobile app or a compatible Humminbird fish finder. Compatibility with Fish Hawk™ X4D Electronics allows you to monitor the depth, temperature and speed at your weight.

Cannon Optimum Transducer (#1491072)

Provides Bottom Tracking ability to Optimum and Digi-Troll electric downriggers. Furthermore, network up to four downriggers to troll at set distances from the bottom through this single transducer.


Check out our other Downriggers here.

Additional information

The Fishhawk X4D System

-Wireless sonar data transmission
-Works with any downrigger cable, including superbraid
-Magnum digit display
-Three-level red back-light
-Ultra-long probe battery life (4 AA not included)
-Units of measure: Fahrenheit/Celsius; feet/meters; MPH/KPH/KNOTS
-Built-in Bluetooth wireless technology
-Wireless integration with Cannon Optimum Downriggers
-Leak-proof probe
-For fresh and saltwater use
-Made in U.S.A.

The Cannon Optimum Downrigger

-Wireless Integration – Fully integrates with Fish Hawk Electronics, the Cannon mobile app and up to four Optimum downriggers wirelessly. The wireless network allows for features like Auto Up all, with one push of a button to instantly retrieve all your weights at once or one at a time.
-Full-Color LCD Screen – 3.5" LCD screen with customizable views, sonar data, user preferences and day and night mode settings.
-Precision Controls – Stores up to 5 Preset Depths and remembers the depth of last catch. Cycle the weight up and down at preset intervals with Depth Cycle, or use –Bottom Tracking to automatically keep your bait at preset distance from the bottom.
-One-Boat Network™ – Complete wireless Integration with select Humminbird® fish finders for full control and critical trolling data.
-Waterline Zero – Protect your boat from swinging weights. Your downrigger will automatically keep your weight at a set distance below the waterline.
-Positive Ion Control (PIC) – Your boat’s electronics create a fish-repelling negative energy field in the water. Positive Ion Control neutralizes the negative energy field so fish will stick closer to your line.
-Speed Adjustments – Five (5) adjustable retrieve and deploy speeds with up to 250 feet-per-minute weight retrieval rate.
-Stainless Steel Telescopic Boom – Extends from 24" to 53".
-Composite Spool – Comes pre-spooled with 400' of 150 lb of stainless steel cable.
-Dual Axis Rod Holder – Includes two (2) rear mount rod holders.
-Removable Side Plate – Easily access the spool to switch lines, fix snags and make adjustments.
-Includes – Universal Mounting Base, Low-Profile Swivel Base, line terminator, two (2) Uni-line releases, and manual crank handle.

The Cannon Optimum Transducer

-Allows Optimums and Digi-Troll downriggers to use the Bottom Track feature to keep your trolling weight a select offset distance from the bottom.
-Provides full-color sonar data to the master Optimum LCD screen.
-Length: 28'
