Choose model from drop down list
Garmin Transom Mount Transducers
$82.99 – $474.99
Description
Garmin Transom Mount Transducers
Dual Frequency Transom Mount
PART NUMBER 010-10272-10
This plastic transom mount can be used to replace the dual frequency transducers included with many Garmin units.
The 500 W 8-pin transducer has a maximum depth of 1,500 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 40 to 10 degrees; and mounts on a 0 to 70 degree transom.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
When using with a 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required.
GT-20 Transom Mount
PART NUMBER 010-01960-01
Perfect for the shallow water fisherman who want traditional and CHIRP ClearVü scanning sonar, this transom or trolling motor mounted transducer consistently displays fish arches as well as clear pictures of objects, structure and fish that pass below your boat. 8-pin
The 20 ft transducer cable with built-in fast response temperature sensor has a power rating of 500 W; a depth of 1,900 ft (traditional) and 750 ft (ClearVü); an operating frequency of 77/200 kHz (traditional) and 455 kHz (ClearVü); and a 0 to 70 transom angle.
Transducer also comes with transom and trolling motor mounts, and installation instructions. Follow the instructions carefully to avoid damaging your boat.

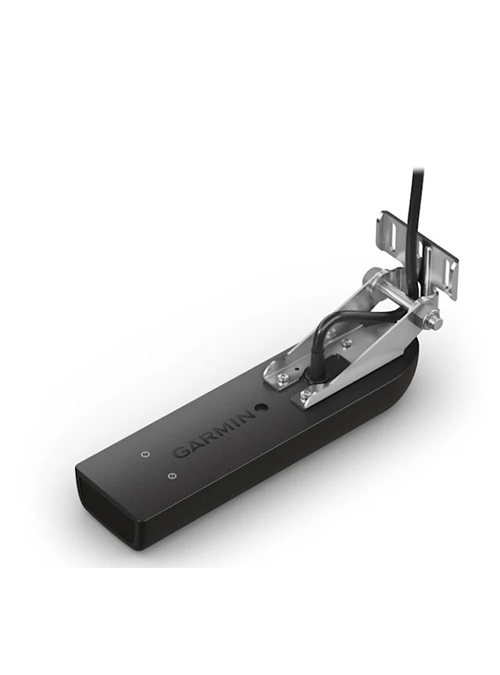

GT-21 Transom Mount
PART NUMBER 010-01962-00
Perfect for coastal and offshore fishermen who want traditional sonar and CHIRP ClearVü scanning sonar. this transom mount transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat.
The CHIRP ClearVü element has a power rating of 500 W and operating frequencies of 260/455 kHz. The traditional sonar has a power rating of 600 W and operating frequencies of 50/200 kHz. It also includes a built-in fast response temperature sensor.
GT21-TM includes an 8-pin transducer with mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.

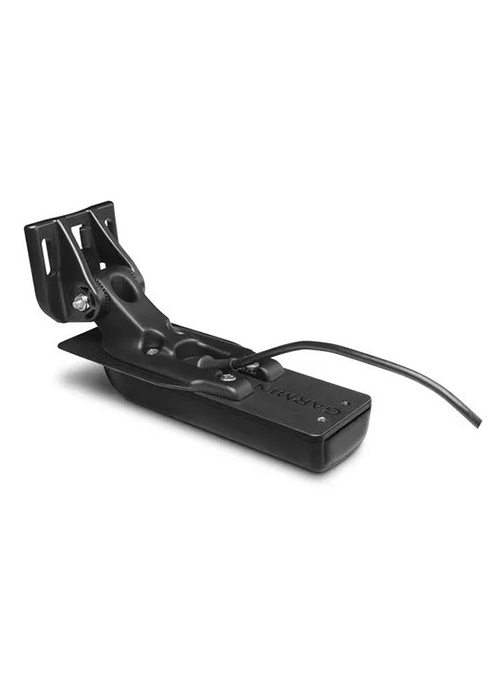

GT-54UHD Transom Mount
PART NUMBER 010-01962-00
The GT54 Ultra High-Definition all-in-one transducer provides image details so clear and precise, you can actually see fish hanging just off branches of submerged trees, brush and rocks. You can see size differences between bigger and smaller fish and even see individual fish swimming in bait balls. You get the highest resolution ClearVü and SideVü scanning sonar images available plus amazingly clear high wide CHIRP traditional sonar — all in one transducer.
- One transducer provides the highest resolution ClearVü and SideVü scanning sonar images available and amazingly clear high wide CHIRP traditional sonar
- High wide CHIRP traditional sonar provides remarkably clear target separation and definition
- See incredibly detailed images of fish and structure up to 200’ below your boat with 800 kHz ClearVü sonar
- Two SideVü sonar frequency settings (455/1200 kHz) provide options for extended range of up to 500’
- Easy-to-install, compact, all-in-one design includes transom and trolling motor mounts

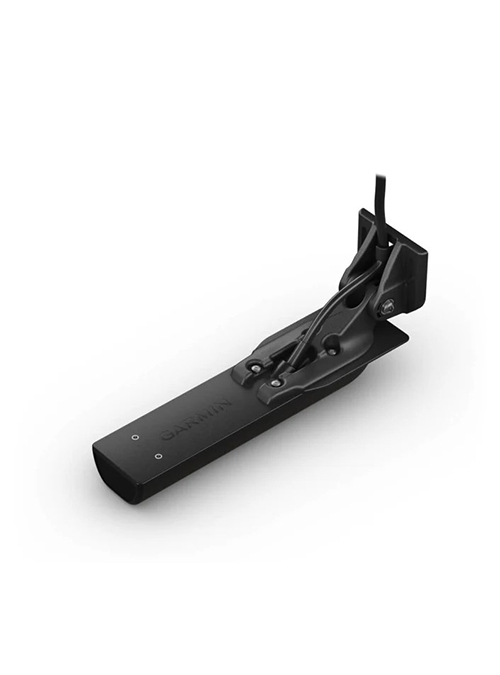

GT-56UHD Transom Mount
PART NUMBER 010-13073-00
his all-in-one transducer offers ultimate versatility, featuring Ultra High-Definition ClearVü and SideVü scanning sonars, high wide CHIRP traditional sonar and more, so you can spend more time catching fish.
- Get brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars. It puts more power on targets via a downward-facing element.
- See everything the first time with stunningly clear images of structure and fish off to the sides of your boat. SideVü sonar now has 20% greater range at 1,000 kHz, so you can see even farther than before.
- Experience remarkably clear target separation and definition up to 800’ below your boat.
- Use the perfect frequency for the waters you’re fishing. This transducer delivers 455 kHz, 800 kHz and 1,000 kHz for top performances at all depths.
- High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure
- Everyone’s setup is different. That’s why we’ve included transom, trolling motor and thru-hull mounting hardware
